DF-1.25G-16P-2E-2F Product Description
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc, Thâm Quyến |
| Hàng hiệu: | DF/OEM/Nuetral |
| Chứng nhận: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Số mô hình: | DF-1.25G-16P-2E-2F Mô tả sản phẩm |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | Có thể thương lượng |
|---|---|
| Giá bán: | negotiable denpend on QTY |
| chi tiết đóng gói: | Hộp vỉ + Thùng carton |
| Thời gian giao hàng: | 5-9 ngày làm việc phụ thuộc vào QTY |
| Điều khoản thanh toán: | Công Đoàn Phương Tây, T/T, MoneyGram/Paypal |
| Khả năng cung cấp: | 1000pcs/ngày |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | DF-1.25G-16P-2E-2F Mô tả sản phẩm | Tiêu thụ điện năng: | Thiết bị<20W, nguồn POE<350W |
|---|---|---|---|
| Cổng mạng: | 1 ～ 16 Cổng: Cổng Ethernet 10/100/1000Mbps, điều khiển thích ứng Cổng Ethernet UPLINK: Cổng Ethernet | Thỏa thuận POE: | Tiêu chuẩn IEEE802.3 af/at |
| Chế độ cấp nguồn PoE: | Phương pháp cuối nhịp | Công suất chuyển đổi: | 40Gbps |
| Cân nặng: | 4,5kg | Độ tin cậy: | ＞50000H |
| Nhiệt độ làm việc: | -10 ~ 55 | Nhiệt độ bảo quản: | -40oC~85oC |
| Kích thước (L*W*H): | 442mm×224mm×44.5mm | Thương hiệu sợi: | Corning, YOFC, OFS, Draka |
| Làm nổi bật: | 16-port Ethernet fiber switch,1.25G fiber optic switch,2E-2F Ethernet switch |
||
Mô tả sản phẩm
DF-1.25G-16P-2E-2F Product Description
Product Overview

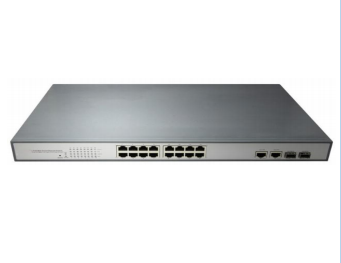

DF-1.25G-16P-2E-2F is a 20-Port Gigabit PoE Switch with 16 PoE Ports, 2 RJ45 Uplink ports, 2 SFP Gigabit Uplink Optical Ports, port 1 to port 16 supports PoE IEEE 802.3at international standard, each port power is 30W. Total power is 350W.
This POE network switch can meet customer’s general demands. POE network switch with POE function, designed for high-definition network camera’s internet access. It provides 16 1000Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.
Product Features
-
20-Port Gigabit PoE Switch with 16 PoE Ports, 2 RJ45 uplink, 2 SFP Gigabit Uplink Optical Ports;
-
Supply power to wireless access points AP and network IP surveillance cameras;
-
Port 1 to Port 16 supports IEEE802.3at power (each port maximum power is 30W);
-
16x 10/100/1000 Mbps ports + 2RJ45 + 2x SFP gigabit optical uplink ports;
-
Compatible with IEEE 802.3 10i and IEEE 802.3u standard;
-
The packet forwarding speed is 1.488Mbps of one wire-speed port;
-
Port features with auto-flip(Auto MDI/MDIX);
-
Network port comes with lighting-proof;
-
All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed;
-
Standard 1U rack design, suitable for rack installation mode;
-
Automatic adjustment, plug and play, no need software and protocol conversion.
Highlight
-
No Frame Loss IP Data Transmission
-
PoE+ Standard 250m in CCTV Mode
-
10 KB Jumbo frames support
-
Few video time delay
-
4KV Lightning Protection
Technical Specifications
Note:
If any changes with product specification, forgive without prior notice.
1) As transmission distance has certain relation with the cable, so you are suggested to use standard cat5e/6
cable for longest distance needed.
