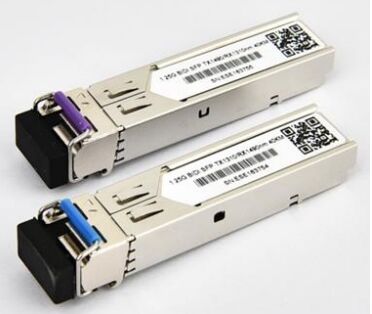

TK-B3424-3LCD20 1.25Gbps SFP Bi-Directional Transceiver, 20KM Reach Tx1310nm/Rx1490nm
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc, Thâm Quyến |
| Hàng hiệu: | DF/OEM/Nuetral |
| Chứng nhận: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Số mô hình: | Cáp chia PoE DF-PS-G 10/100/1000M (13W) |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | Có thể thương lượng |
|---|---|
| Giá bán: | negotiable denpend on QTY |
| chi tiết đóng gói: | Hộp vỉ + Thùng carton |
| Thời gian giao hàng: | 5-9 ngày làm việc phụ thuộc vào QTY |
| Điều khoản thanh toán: | Công Đoàn Phương Tây, T/T, MoneyGram/Paypal |
| Khả năng cung cấp: | 1000pcs/ngày |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | Bộ thu phát hai chiều SFP TK-B3424-3LCD20 1,25Gbps, Phạm vi tiếp cận 20KM Tx1310nm/Rx1490nm | điện áp cung cấp: | 3,15-3,6V |
|---|---|---|---|
| Nguồn cung hiện tại: | 185-280 mA | Trở kháng vi sai đầu vào: | 100Ω |
| Xoay đầu vào dữ liệu kết thúc đơn: | 250-1200 mV | Truyền Vô hiệu hóa thời gian xác nhận: | 10 chúng tôi |
| Xoay đầu ra dữ liệu đã kết thúc ISingle: | 250-800 mV | Từ chối cung cấp điện: | 100 mVpp |
| Nhiệt độ làm việc: | 0 °C đến +70 °C | Nhiệt độ bảo quản: | -40 °C đến +85 °C (Công nghiệp) |
| Bảo hành: | 1 năm, bảo trì trọn đời | Thương hiệu sợi: | Corning, YOFC, OFS, Draka |
| Làm nổi bật: | 1.25Gbps SFP transceiver 20KM reach,Bi-Directional SFP transceiver Tx1310nm/Rx1490nm,Optical transceiver module with 20KM range |
||
Mô tả sản phẩm
The SFP-BIDI transceivers are high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps with 20KM transmission distance over single-mode fiber.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472 specifications.
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1310nm FP laser and PIN photodetector for 20KM transmission
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Digital Diagnostic Monitoring with Internal or External Calibration
- Compatible with SONET OC-24-LR-1
- RoHS compliant
- +3.3V single power supply
- Operating case temperature range: 0°C to +70°C (Commercial) / -40°C to +85°C (Industrial)
Notes:
1. Connected directly to TX data input pins. AC coupled thereafter.
2. Or open circuit.
3. Into 100 ohms differential termination
4. 20 - 80%
5. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Samples: 1-3 working days
Mass Production Orders: 3-7 working days
Packaging: Plastic bags, cartons, and pallets available per request
Please provide your email or contact information through our website to receive our catalogue and price list.
Yes, we may consider discounts for multiple container loads of mixed goods.
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
EXW, FOB, CFR, CIF, DDU
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Yes, we can manufacture products based on your samples or technical drawings.
