1 Channel Video Digital Optical Converter
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc, Thâm Quyến |
| Hàng hiệu: | DF/OEM/Nuetral |
| Chứng nhận: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Số mô hình: | TK-PC-48F-SC-OS2-50M |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | Có thể thương lượng |
|---|---|
| Giá bán: | negotiable denpend on QTY |
| chi tiết đóng gói: | Hộp vỉ + Thùng carton |
| Thời gian giao hàng: | 5-9 ngày làm việc phụ thuộc vào QTY |
| Điều khoản thanh toán: | Công Đoàn Phương Tây, T/T, MoneyGram/Paypal |
| Khả năng cung cấp: | 1000pcs/ngày |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | Bộ chuyển đổi quang kỹ thuật số video 1 kênh | kênh video: | 1 |
|---|---|---|---|
| băng thông video: | 0 ~ 6,5 MHz | Tỷ lệ mẫu: | 8bit/10bit |
| Tỷ lệ tín hiệu trên tạp âm: | ≥ 65dB | Hệ thống tín hiệu: | PAL / NTSC / SECAM |
| Kênh dữ liệu: | 1 hoặc 2 chiều | Tốc độ dữ liệu: | 0 ~ 100Kb/giây |
| Thương hiệu sợi: | Corning, YOFC, OFS, Draka | Bước sóng truyền: | 1310nm/1550nm |
| giao diện quang học: | FC / PC | Dải động quang học: | 17dB |
| Nhiệt độ hoạt động:: | -10oC ~ +55oC | ||
| Làm nổi bật: | 1 channel digital optical converter,video optical converter with warranty,high power digital optical converter |
||
Mô tả sản phẩm
1 Channel Video Digital Optical Converter
Product Overview
This series of Digital Optical Converters utilizes all-digital communication technology, capable of simultaneously transmitting 1 forward video channel and 1 or 2 reverse RS485/422 data channels over a single fiber. Featuring non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality for professional applications.
Key Features
- Fully-digital, non-compressed broadcast fiber optic transmission
- Ultra-optical dynamic range, ready to use without adjustment
- Compatible with PAL, NTSC, SECAM and other video formats
- RS232/485/422 data communication support
- Three-level lightning protection system
- Automatic power adjustment and temperature compensation
- Automatic overload protection with self-recovery
- Full Surface Mount Technology for reliability
- Standard 19" 4U chassis for monitoring side
- Compact desktop chassis for remote side with wall-mount capability
- Monitor chassis supports up to eight cards for centralized management
Performance Specifications
Video Performance
| Parameter | Specification |
|---|---|
| Video Channels | 1 |
| Video Bandwidth | 0 ~ 6.5MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Vertical Tilt | <0.5% (max) |
| Input/Output Impedance | 75Ω (unbalanced) |
| Input/Output Level | 1.0Vpp (typical) |
| Signal System | PAL/NTSC/SECAM |
Data Performance
| Parameter | Specification |
|---|---|
| Data Channels | 1 or 2-way |
| Data Interface | RS485/422 (optional) |
| Physical Interface | Five industrial terminal |
| Data Rate | 0 ~ 100Kbps |
| Bit Error Rate | <10E-12 |
Optical Performance
| Parameter | Specification |
|---|---|
| Transmission Wavelength | 1310nm/1550nm |
| Optical Interface | FC/PC |
| Transmit Optical Power | -8dB |
| Receiver Sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum Optical Loss | 14dB |
| Transmission Distance | More than 20KM (single) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -10℃ ~ +55℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 483mm (L) x 170mm (W) x 55mm (H) |
| Weight | 6.0kg / PC |
| MTBF | More than 100,000 hours |
Typical Applications
- Security & Safe City building security monitoring
- Highway and railway transportation remote monitoring
- Urban public transport monitoring systems
- E-police applications
- Operator unattended engine room monitoring
- Bank security monitoring
- Power system remote monitoring
- Industrial and mining production process monitoring
- Water flood control and reservoir site monitoring
- Airport security monitoring
- Radio and television image transmission
- School campus and examination room monitoring
- High-rise buildings and intelligent community security
- Customs barrier and warehouse video surveillance
- Petrochemical facility monitoring
- Prison video surveillance systems
- Government agency monitoring and alarm systems
- Military command and control visualization
- Forest fire command systems

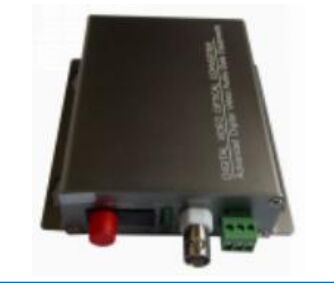

Product Image
Why Choose TAKFLY
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 sets of Germany imported Injection Machines
- 16 dedicated production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Final spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we offer discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We will provide specific charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, please take photos for our reference. Our QC department will investigate and provide solutions while implementing improvements for future production.
Q6: What is your terms of packing?
A6: Standard packing includes blister boxes and cartons. Custom packaging is available upon customer request.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance payment before delivery. We provide product and packaging photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU terms available.
Q9: How about your delivery time?
A9: Typically 5-7 working days after receiving advance payment. Exact timing depends on product type and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
