Waterproof SC/APC 1x8 Mini FiberHub CLOSURE ITU-T SM G657A2 Fiber Optic PLC Splitter IP68
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Thâm Quyến, Trung Quốc |
| Hàng hiệu: | Takfly/OEM |
| Chứng nhận: | ISO9001; ISO14001 |
| Số mô hình: | Bộ chia PLC 1 * 8 chống nước |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 chiếc |
|---|---|
| Giá bán: | Can be negotiated |
| Thời gian giao hàng: | 3-7 ngày làm việc |
| Điều khoản thanh toán: | Công Đoàn Phương Tây, MoneyGram, L/C, T/T |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | Bộ chia PLC 1 * 8 chống nước | Loại sợi: | ITU-T G.657A2 |
|---|---|---|---|
| Kích thước cáp: | 4,8mm | Nhiệt độ hoạt động: | -40 ~+70 |
| Nhiệt độ bảo quản: | -40 ~+70 | Trả lại tổn thất: | ≥50db |
| Bụi tối đa. Lực kéo: | 100lb | Chống nước: | IP68 |
| Làm nổi bật: | Waterproof fiber optic PLC splitter,SC/APC 1x8 fiber splitter,IP68 fiber optic closure |
||
Mô tả sản phẩm

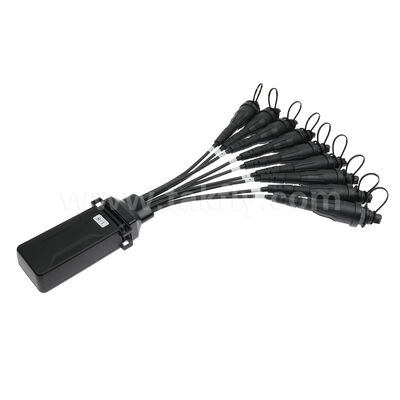

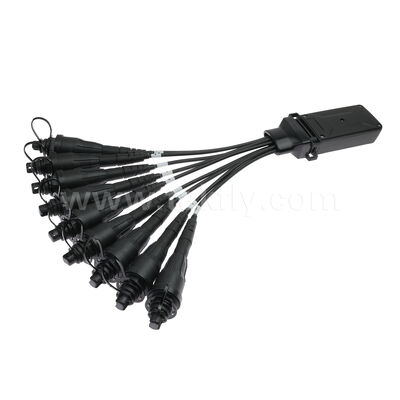

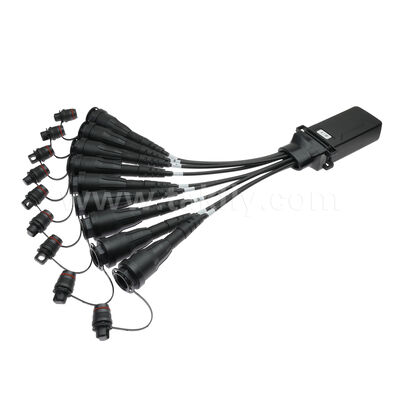

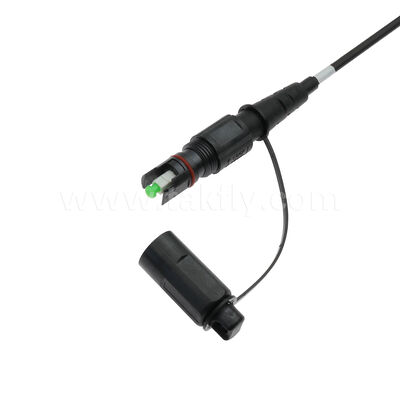

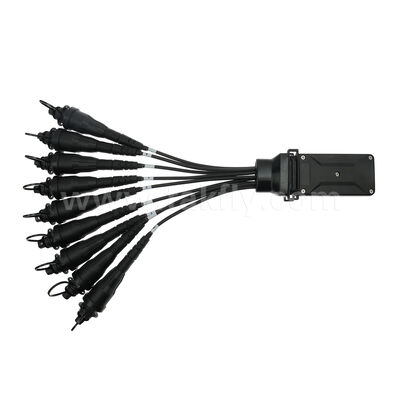

Mini FiberHub Closure provides the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly faster than traditional field installations. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch. Mini FiberHub Closure provides quick installation solutions and has good performance when mating with SuperTap connector. Cable can be armored or non-armored.
| Comply to | GR-3120, GR-3152, IEC 61753-1, IEC 61754-4 |
| Insertion Loss (SuperTap/SC&LC)* | Max. 0.5dB, Mean 0.15dB (8° angled) |
| Insertion Loss (SuperTap/MPO) | Max. 0.6dB, Mean 0.35dB (8° angled) |
| Return Loss (SuperTap/SC&LC) | Min 55dB (8° angled) |
| Return Loss (SuperTap/MPO) | Min 55dB (8° angled) |
| Fiber Type | ITU-T G.657A2 |
| Operation Temperature | -40 to 70°C |
| Storage Temperature | -40 to 70°C |
| Dust Cap Max. Pulling Force | 100lb |
| Water Resistance | IP68 |
*SuperTap/SC connector is compatible with OptiTap™
Remark: "X" means polishing method. A: APC polishing; U: UPC polishing
- Provides moisture and dust protection for use in harsh industrial environments
- IP68 protection, salt-mist proof, humidity proof, dust proof
- Drastically reduces field splicing with a predetermined loss at each waterproof tether access point
- Utilize traditional field installation techniques for aerial, below ground and duct applications
- Reduce installation time by as much as 50 percent per network access point
- 100% optically tested to ensure quality performance assemblies
- Available in single mode and multimode styles to work with any common fiber type
- Broad temperature range (-40 to +70°C) is ideal for indoor or outdoor applications
- Mark on dust cap can help people who cannot distinguish between colors to operate
Takfly's Fiber Optic PLC Splitter is a kind of optical power management device that is fabricated using silica optical waveguide technology. It can split the optical signal accurately and evenly, and it is available in a variety of configurations.
Takfly's Fiber Optic PLC Splitter is made by silicon optical waveguide technology. It is composed of input, output and splitter which can split the optical signal accurately and evenly.
Takfly's Fiber Optic PLC Splitter can be used in a variety of applications such as telecommunications, CATV, local and metro networks, optical fiber sensing, video transmission, etc.
The Brand Name of Takfly's Fiber Optic PLC Splitter is Takfly/OEM.
Takfly's Fiber Optic PLC Splitter is made in Shenzhen, China.
