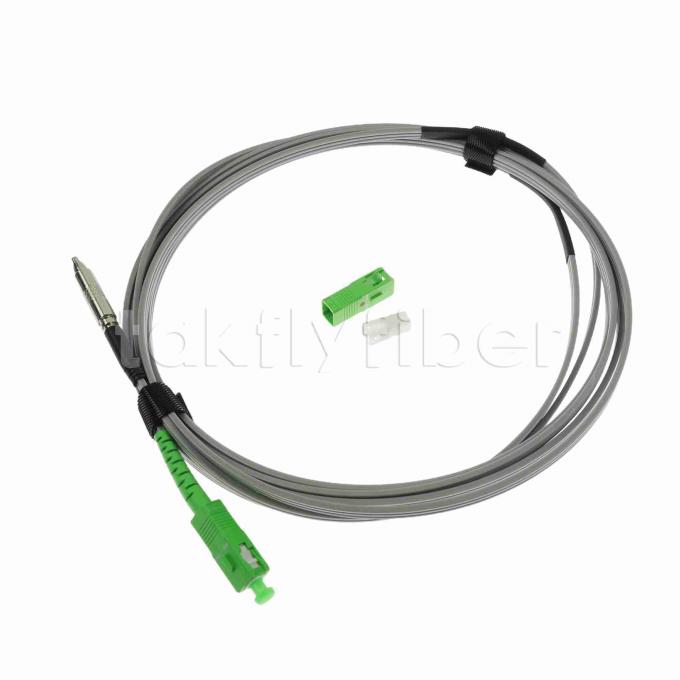

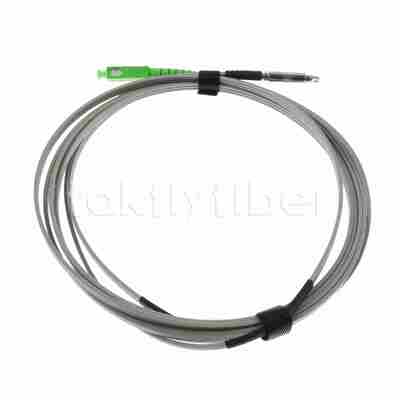

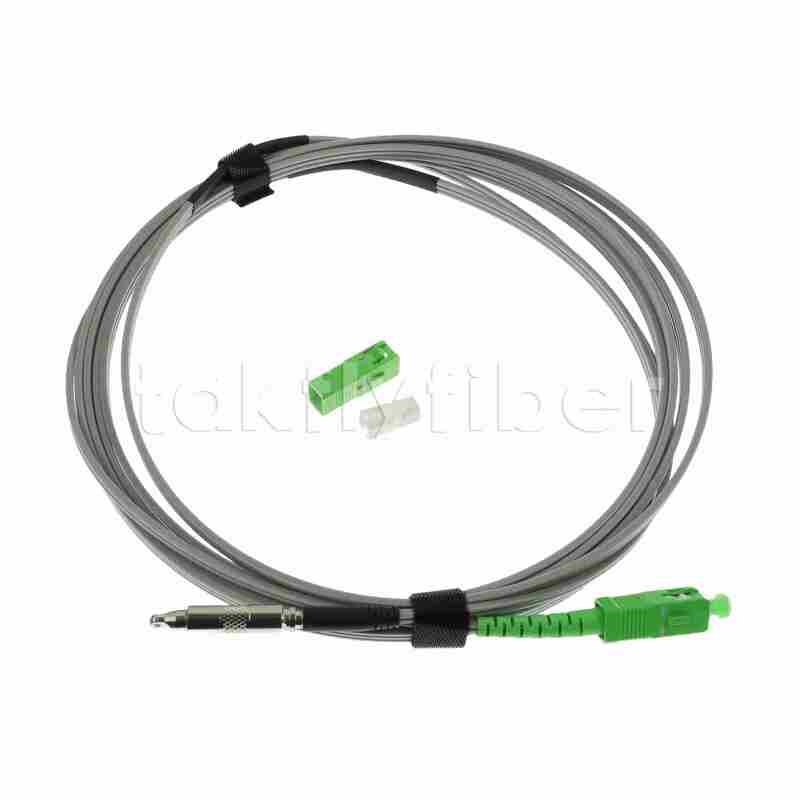

2.0*5.2mm SC/APC to SC/APC Pushable Fiber Drop Cable Assemblies for FTTH and FTTP

FTTH FTTX Pullable Bullet SC/APC to SC/APC Fiber Optic Patchcord, SM G657A2, 2.0×5.2mm, LSZH Jacket

Takfly Pushable Fiber Drop Cable Assemblies are purpose-built for fast, clean installations in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks. Each assembly features a factory-terminated SC/APC connector designed to be pushed through microducts, conduit, or walls, then snapped directly into a terminal housing—eliminating the need for splicing or specialized tools.

If routing through a wall, simply drill a 3/8″ hole for cable entry. The Pushable SC/APC connector can be pushed through existing microduct or conduit—no drilling required—and once routed, the SC/APC housing snaps onto the ferrule without tools. The final connection is made by plugging directly into an Optical Network Terminal (ONT), wall plate, or enclosure.

Built with bend-insensitive single-mode fiber (G.657.A2 or G.657.B3), these rugged, low-profile assemblies are ideal for tight routing environments such as Single-Family Units (SFUs) and Multi-Dwelling Units (MDUs). Assemblies are made to order in custom lengths, with optional pulling eyes, and are available in black or white jackets.

• Mode field diameter: 8.6μm ±0.4μm at 1310nm
• Cladding diameter: 125.0μm ±0.7μm
• Coating diameter: 245μm ±10μm
• Coating-cladding concentricity error: ≤12.5μm
• Cut-off wavelength: ≤1260nm
• Attenuation coefficient: 1310 ≤0.4dB, 1550 ≤0.3dB

• Number of fiber: 1 core
• Fiber type: G657A1
• Strength member material: FRP
• Diameter: 0.5mm × 2
• Self support Messenger wire: Steel wire, Diameter: 1.0mm
• Outer sheath: LSZH Black, Cable size: 5.0×2.0mm

• CATV
• Telecommunication networks
• Active device termination
• Local area networks (LANS)
• Data processing networks
• FTTH, FTTX
• Wide area networks (WANS)

• Low insertion loss and High reflection loss
• Good exchange ability
• Good durability
• High temperature stability
• Standard: Telcordia GR-326-CORE
