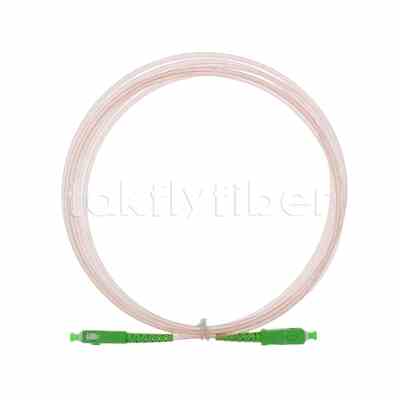

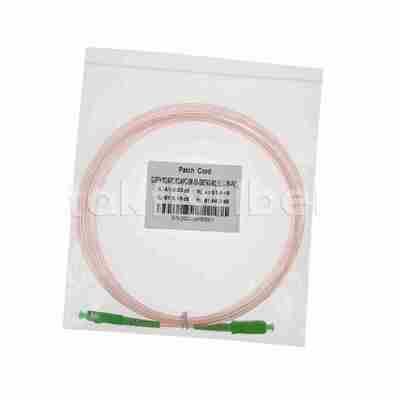

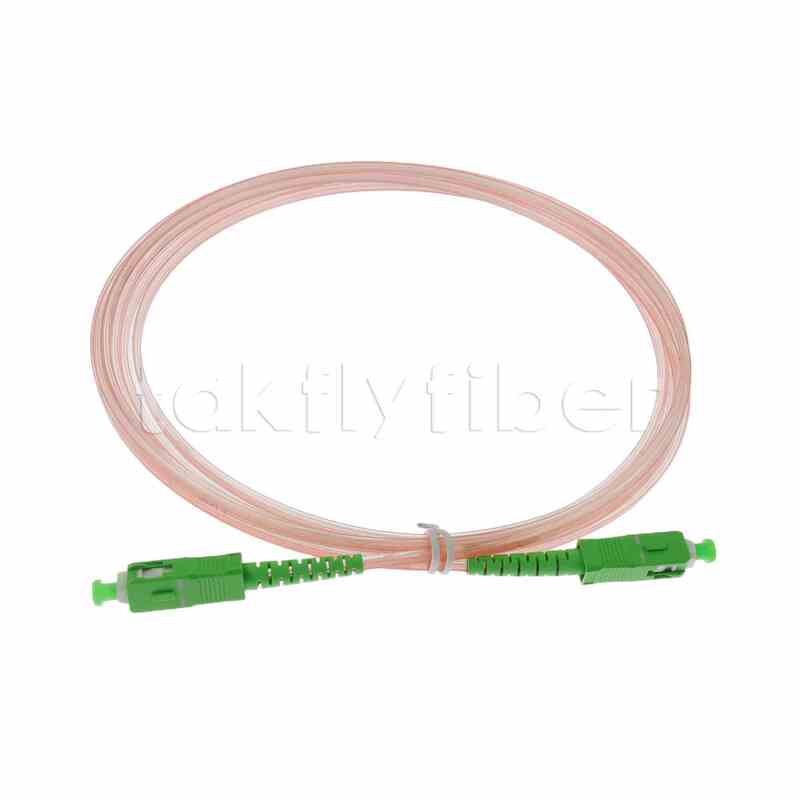

SCAPC to SCAPC Newly Developed Invisible Self-Adhesive Fiber Optic Patchcord for FTTH FTTR Application
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | DF/OEM/Nuetral |
| Chứng nhận: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Số mô hình: | TK-SI-PC--SA-SA-2.0x3.0-PVC-XXX |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100 chiếc |
|---|---|
| Giá bán: | US$0.01~3.99/PC |
| chi tiết đóng gói: | Đóng gói tiêu chuẩn xuất khẩu |
| Thời gian giao hàng: | 5-9 ngày làm việc phụ thuộc vào QTY |
| Điều khoản thanh toán: | Liên minh phương Tây, T/T, Moneygram/PayPal |
| Khả năng cung cấp: | 5000pcs/ngày |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | SCAPC đến SCAPC Dây nối sợi quang tự dính vô hình mới được phát triển cho ứng dụng FTTH FTTR | Mất xen kẽ: | .30,3dB |
|---|---|---|---|
| Trả lại tổn thất: | APC SM ≥ 60dB | Loại sợi: | OS2, G652D, G657A1, G657A2, G657B3 |
| Đường kính: | 2,2x3,0 ± 0,2mm | Loại kết nối: | APC |
| Chất liệu áo khoác: | PVC | Màu sắc: | Minh bạch |
| Bước sóng: | 1310nm, 1550nm | Chiều dài: | 3m hoặc Tùy chỉnh |
| Nhiệt độ hoạt động: | -20oC~70oC | Đường kính sợi: | 9/125 |
| Cấp: | Lớp viễn thông | Giấy chứng nhận: | CE/ROHS/TIẾP CẬN |
| Năng lực sản xuất: | 10000 chiếc / ngày | ||
| Làm nổi bật: | Invisible Self-Adhesive FTTH Drop Cable,G657A Fiber SCAPC Patchcord,2.2x3.0mm Diameter Fiber Optic Patchcord |
||
Mô tả sản phẩm
SCAPC to SCAPC Invisible Self-Adhesive Fiber Optic Patchcord for FTTH/FTTR Applications
Takfly's Flat Self-adhesive FTTH Drop Cable provides direct connectivity to homes without bandwidth, wavelength, or transmission technology restrictions. The optical fiber unit is centrally positioned with two parallel strength members on either side, completed with a transparent PVC sheath and a self-adhesive double-sided tape layer.
Product Specifications
Fiber Optic Attributes
- Mode field diameter: 8.6um±0.4um at 1310nm
- Cladding diameter: 125.0um±0.7um
- Coating diameter: 245um±10um
- Coating-cladding concentricity error: ≤12.5um
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310≤0.4dB 1550≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1/SM G657A2/G657B3
- Strength member material: FRP
- Diameter: 0.5mm*2
Outer Sheath
- Material: LSZH Black
- Cable size: 2.0*3.0mm
Connector Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km*L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 70N |
Fiber Parameters
| Optical fiber type | Test wavelength | Attenuation | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius (mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | ... | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | ... | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | ... | ... | 7.5 |
| G657B3 | 1310/1550nm | 0.36/0.22 | ... | ... | 5 |
Cable Structure
| Item | Contents | Value |
|---|---|---|
| Optical Fiber | Fiber Count | 1 or 2 |
| Fiber Type | SM G657A2 or SM G657AB3 | |
| Fiber Diameter | 0.25mm | |
| Strength Member | Material | FRP |
| Diameter | 2 x 0.5mm | |
| Outer Sheath Cable | Material | PVC |
| Thickness | 0.4mm | |
| Diameter | 2.0x3.0mm | |
| Double-sided Tape | Glue | Acrylic Acid |
| Release paper | PP | |
| Outer Diameter | Outer Sheath with Double-sided tape | 2.2x3.0±0.2mm |
Mechanical and Environmental Characteristics
| Cable type | Diameter (mm) | Weight (Kg/km) | Max. Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (℃) |
|---|---|---|---|---|---|---|
| GJXFH-1~2 | 2.2x3.0±0.2mm | 9.5 | 40/80 | 500/1000 | 20D/10D | -20~+70 |
Applications
- FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
- Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
- Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
- Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
- Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Product Features
- Invisible Fiber Design: 2.2x3.0±0.2mm cable with transparent finish blends into surroundings for discreet indoor use
- High-Performance SC/SCA Connectors: Ensures low insertion loss and high return loss for stable signal transmission
- Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
- Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We provide professional guidance to help you save time and money while increasing your sales.
