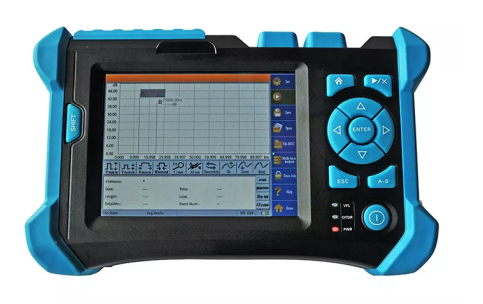

Optical Time Domain Reflectometer | OTDR Tester Equipment | Powerful performance& Easier operation& Efficient work
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc, Thâm Quyến |
| Hàng hiệu: | DF/OEM/Nuetral |
| Chứng nhận: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Số mô hình: | Máy phản xạ phạm vi thời gian quang học |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | Có thể thương lượng |
|---|---|
| Giá bán: | negotiable denpend on QTY |
| chi tiết đóng gói: | Hộp vỉ + Thùng carton |
| Thời gian giao hàng: | 5-9 ngày làm việc phụ thuộc vào QTY |
| Điều khoản thanh toán: | Liên minh phương Tây, T/T, Moneygram/PayPal |
| Khả năng cung cấp: | 1000 chiếc / ngày |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | Máy đo phản xạ miền thời gian quang học | Thiết bị kiểm tra OTDR | Hiệu suất mạnh mẽ & Vận hành | Bước sóng: | 850/1300 1310/1550 1310/1490/1550 1625 |
|---|---|---|---|
| Giao diện quang học: | FC/UPC (có thể lựa chọn PC và APC) | Giao diện dữ liệu: | Giao diện USB, giao diện thẻ SD |
| Cổng giao tiếp: | USB | Khoảng cách thử nghiệm tối đa: | 3KM |
| Nhiệt độ hoạt động ((°C): | -10～+50°C | Kích thước (H x W x D): | 150x235x66mm |
| Cân nặng: | 1,5kg | Thương hiệu sợi: | Corning, YOFC, OFS, Draka |
| Làm nổi bật: | OTDR tester equipment with warranty,Optical Time Domain Reflectometer for fiber optic,OTDR tester powerful performance |
||
Mô tả sản phẩm
An Optical Time-Domain Reflectometer (OTDR) is a crucial instrument used for characterizing and testing optical fibers, helping to identify faults, measure losses, and ensure the integrity of fiber optic networks.
Optical Time Domain Reflectometer Overview
Designed to meet measurement requirements for FTTx, Metropolitan Area Networks, Backbone Networks, and other optical network applications.
Optical Time Domain Reflectometer Applications

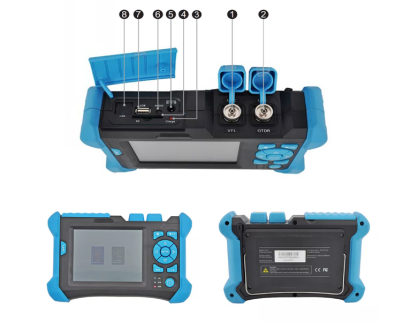

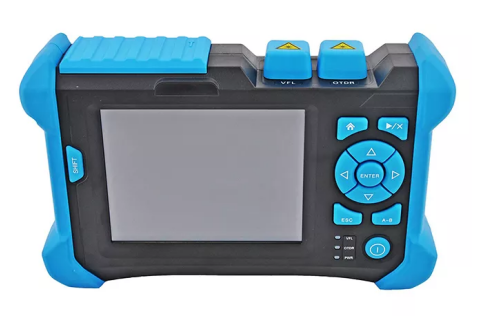

- Optical interface 1/VFL
- Optical interface 2/OTDR
- Charging indicator
- SD card interface
- Power adapter interface
- Earphone interface
- USB interface
- Ethernet interface
Optical Time Domain Reflectometer Features
- Large touch screen with shortcut keys for easy operation
- Large-capacity polymer lithium battery with extended working hours
- Intelligent testing with simple operation and powerful functionality
- Memory Card + SD card media with extensive trace storage capacity
- Capable of meeting FTTx testing requirements
- Multiple wavelength options available
- Solid casing design with dustproof and shockproof protection
Technical Specifications
| Wavelength (nm) | 850/1300 | 1310/1550 | 1310/1490/1550 | 1625 |
|---|---|---|---|---|
| Dynamic range(dB) | 21/19 | 32/30 | 32/30/30 | 344, 365 |
| Pulse width (ns) | 5,20,40,80,160,320,640,1280 | 5,10,20,40,80,160,320,640,1280,2560,5120,10240,20480 | ||
| Event blind zone(m) | 10 | ≤1.8 | ||
| Attenuation blind zone (m) | 20 | ≤10 | ||
| Display | 5.6" LCD touch screen | |||
| Linearity (dB/dB) | ±0.05 | |||
| Loss threshold (dB) | 0.05 | |||
| Loss resolution ratio (dB) | 0.01 | |||
| Sampling resolution ratio(m) | 0.125 to 8 | |||
| Sampling point | 32K | |||
| Distance uncertainty (m) | ±(1 m + 5 x 10 x distance + sampling interval) | |||
| Distance scope (km) | 0.3 to 180 | |||
| Typical real-time refreshing duration (s) | 0.2 | |||
| Memory capacity of trace | SD Card (4G), > 10000 pieces | |||
| Duration of measurement | Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable | |||
General Specifications
| Dimension (H x W x D) | 150 x 235 x 66mm |
|---|---|
| Weight | 1.5KG |
| Temperature | Running temperature -10°C to 50°C Memory temperature -40°C to 70°C |
| Relative humidity | 0% to 95% (non condensation) |
| Power supply | Lithium battery; continuing working duration ≥ 8 hours |
Interface Category
| Optical interface | FC/UPC (PC, and APC are selectable) |
|---|---|
| Data interface | USB interface, SD card interface |
Visible Failure Orientation VFL
| Wavelength | 650nm |
|---|---|
| Output power (dBm) | ≥ -3 |
| Maximum testing distance | 3KM |
OTDR Meter Capabilities
- Automatic Measurement Mode: Automatic parameter setting, trace data saving, and analysis
- Multi-wavelength Measurement Mode: Analysis of fiber attenuation under different wavelengths
- Trace Fixing Function: Same-screen comparison of traces for multi-core fiber installation
- Multi-wavelength Analysis Function: Comparison and analysis of trace files
- FTTx online testing with splitter and fiber end identification
- Large-capacity lithium-ion rechargeable battery with over 8 hours standby time
- Bellcore file format (.sor) with storage for over 10,000 traces
- Communication Light Detection for equipment protection
- Connection State Detection for instrumentation status monitoring
- Flexible switching between real-time and average measurement modes
OTDR Traces Manager PC Software
- Bulk amendment and batch printing capabilities
- Customizable test report generation
- Multiple printing modes: single-page single-trace, batch, multi-trace, multi-waveform
- Personalized printing options and page setup
- Waveform difference comparison for parameter change analysis
Optical Time Domain Reflectometer
