Flat Self-adhesive FTTH Fiber Optic Drop Cable G657A2 2.0X3.0mm
Thông tin chi tiết sản phẩm:
Giá tốt nhất Tiếp xúc|
Thông tin chi tiết |
|||
| Làm nổi bật: | self-adhesive fiber optic drop cable,FTTH G657A2 fiber cable,2.0X3.0mm flat fiber optic cable |
||
|---|---|---|---|
Mô tả sản phẩm

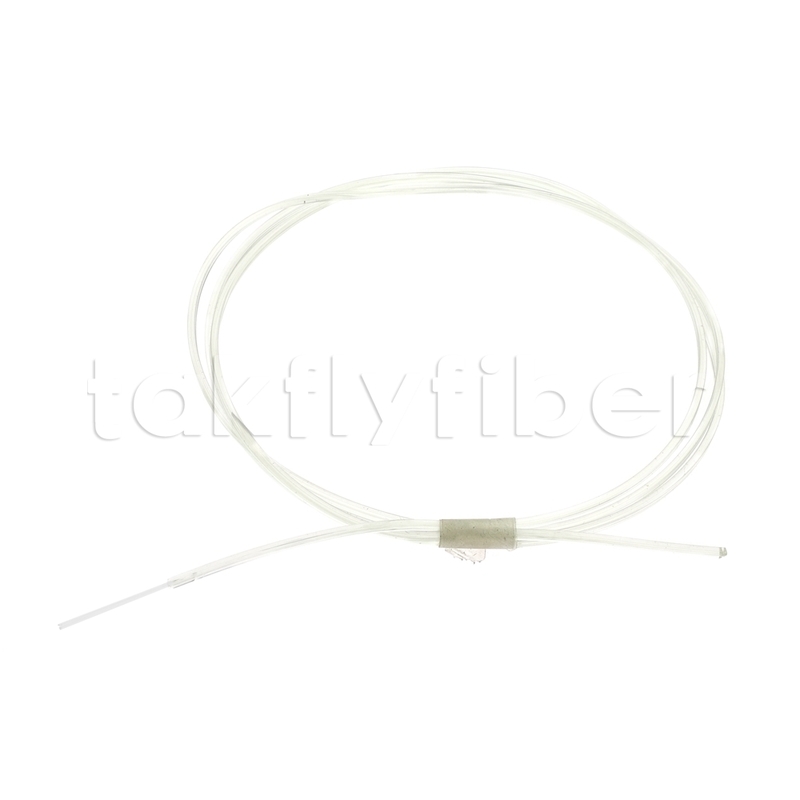

Flat Self-adhesive Transparent FTTH Fiber Optic Drop Cable 2.0X3.0mm Sm G657A2 Flat Type Indoor Cable
Product Overview
Takfly's Flat Self-adhesive FTTH Drop Cable addresses modern networking challenges with innovative design. The self-adhesive structure allows for simple, damage-free installation in fine-decorated environments without compromising aesthetics or building integrity.
Key Features
- Special low-bend-sensitivity fiber provides high bandwidth and excellent transmission properties
- Simple structure with light weight and high practicability
- Excellent mechanical properties with high electrical insulation
- Strong flexibility, sturdiness, and good flame retardancy
- Simple construction that's both beautiful and reliable
Applications
- Ideal for indoor distribution networks
- Suitable for aerial, wall or vertical surface applications
- Perfect for FTTH installations requiring indoor horizontal and vertical cabling
Optical Parameters
| Optical fiber type | Test wavelength | Attenuation (dB/km) | Minimum bending radius (mm) |
|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 (Typical) 0.5/0.4 (Maximum) |
16 |
| G657A1 | 1310/1550nm | 0.36/0.22 (Typical) 0.5/0.4 (Maximum) |
10 |
| G657A2 | 1310/1550nm | 0.36/0.22 (Typical) 0.5/0.4 (Maximum) |
7.5 |
Product Structure
| Item | Contents | Value |
|---|---|---|
| Optical Fiber | Fiber Count | 1 or 2 |
| Fiber Type | SM G657A2 or SM G657AB3 | |
| Fiber Diameter | 0.25mm | |
| Strength Member | Material | FRP |
| Diameter | 2 x 0.5mm |
Mechanical and Environmental Characteristics
| Cable type | Diameter (mm) | Max Tension (N) | Min. Bending Radius (mm) |
|---|---|---|---|
| GJXFH-1~2 | 2.2x3.0±0.2mm | 40/80 (Long/Short Term) | 20D (Dynamic) 10D (Static) |
Packaging

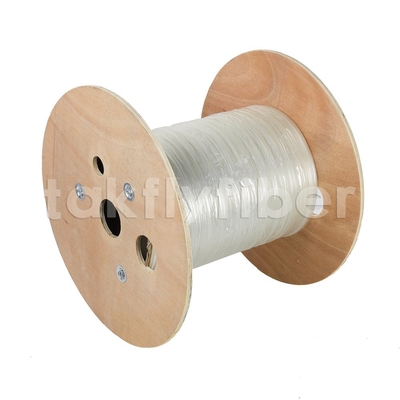

Standard delivery length is 1km/drum or 2km/drum. Custom lengths available upon request.
