12 Core OM3 Fiber Optic Pigtail LSZH Jacket 0.9mm SC FC ST LC
Thông tin chi tiết sản phẩm:
| Chứng nhận: | RoHS, CE, ISO9001, VDE, CCC |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 10 |
|---|---|
| Giá bán: | 0.69 |
|
Thông tin chi tiết |
|||
| Cấu trúc kết nối: | Sc | Hình dạng vật chất: | Dây tròn |
|---|---|---|---|
| Cho phép áp lực bên: | 100 (n/100mm) <1000 (n/100mm) | Cho phép sức mạnh kéo: | 100n <1000n |
| Cốt lõi: | Đa nhiều | Vật liệu vỏ bọc: | PVC |
| Loại kết nối: | SC, FC, ST, LC, MTRJ, MPO, MTP, MU, SMA, ECT | Đường kính ngoài cáp: | 0,9mm, 1,6mm, 1,8mm, 2,0mm, 2,4mm, 2,8mm, 3.0mm |
| Vật liệu cáp cáp: | PVC, LSZH, Ofnp, PE, pu | Loại sợi: | OS1, OS2, OM1, OM2, OM3, OM4 |
| Lõi sợi: | Sx, dx, 4 ~ 144 lõi đa sợi | Trở lại tổn thất: | PC> 30dB; APC> 50db |
| Mất chèn: | <0,3 dB | Nhiệt độ hoạt động: | -45 đến +85 độ |
| Kích thước lỗ ferrule: | 125.0+1/-0um, Concertricity: ≤1.0um | 125.0+1/-0um, Concertricity: ≤0,5um | 125,0um, Concertricity: | ||
| Làm nổi bật: | 12 core OM3 fiber optic pigtail,LSZH jacket fiber optic cable,SC FC ST LC fiber pigtail |
||
Mô tả sản phẩm

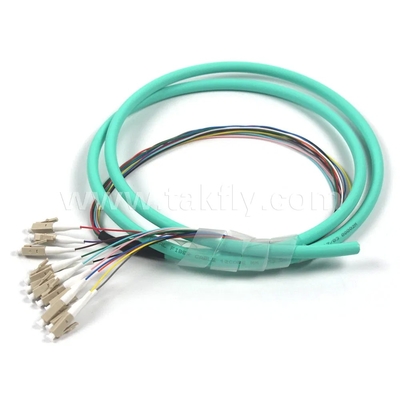

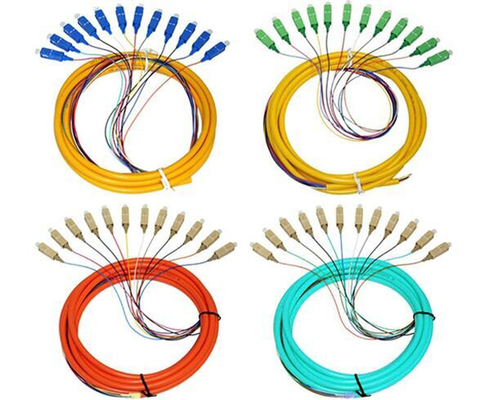

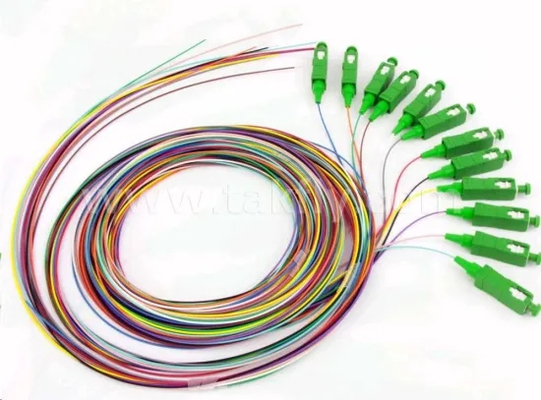

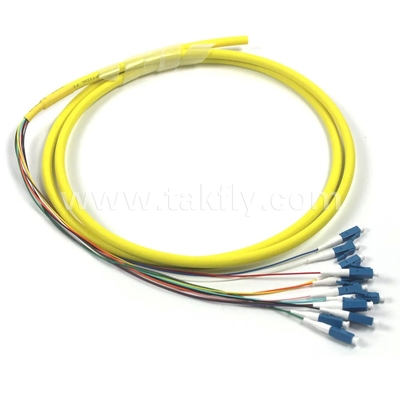

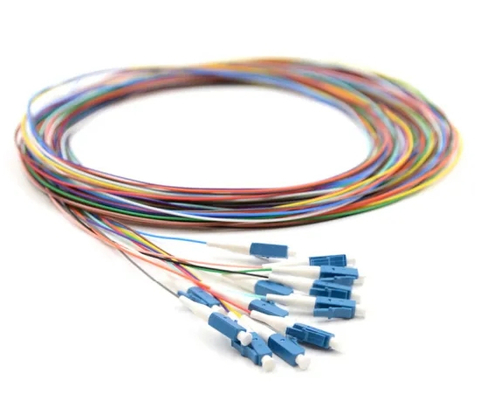

High Quality LSZH Jacket 12 Cores LC SC FC ST Bundle Fan-out OM3 Fiber Optic Pigtail
Product Description

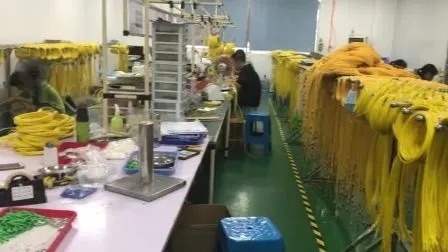

Optical Fiber Pigtail provides quick and easy field termination of fibers. Available in 900 micron options, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality. We offer high quality products at competitive prices through direct sourcing.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation
- Cost-effective solution
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.2dB | ≤ 0.25dB |
| Return loss | ≥55dB | ≥65dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85°C | ||
Ferrule Hole Sizes
| Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|
| 125.0+1/-0μm, Concentricity: ≤1.0μm | 125.0+1/-0μm, Concentricity: ≤0.5μm | 125.0μm, Concentricity: ≤3.0μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 125.3+1/-0μm, Concentricity: ≤0.5μm | 127.0μm, Concentricity: ≤3.0μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 125.5+1/-0μm, Concentricity: ≤0.5μm | 128.0μm, Concentricity: ≤3.0μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 126.0+1/-0μm, Concentricity: ≤0.5μm |
Product Options
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |
