FC to FC Multimode 50/125 Duplex Fiber Optic Patch Cord for 10Gbps Networks with Low Insertion Loss and High Return Loss

FC to FC Multimode 50/125 Duplex Fiber Optic Patch Cord for 10Gbps Networks with Low Insertion Loss and High Return Loss

Thông tin chi tiết sản phẩm:

Chứng nhận: RoHS, CE, ISO9001, VDE, CCC

Thanh toán:

Số lượng đặt hàng tối thiểu: 10
Giá bán: 0.45
Giá tốt nhất Tiếp xúc

Thông tin chi tiết
Cấu trúc kết nối: FC-FC Hình dạng vật chất: Dây tròn
Cho phép áp lực bên: > 1000 (n/100mm) Cho phép sức mạnh kéo: > 10000n
Cốt lõi: Lõi đơn Vật liệu vỏ bọc: PVC hoặc LSZH
Mất chèn: Ít hơn 0,3dB Trở lại tổn thất: Hơn 45db
Bước sóng hoạt động: 1310 1510nm Nhiệt độ hoạt động: -40~75
Nhiệt độ lưu trữ: -45 ~ 85 Loại sợi: OS1, OS2, OM1, OM2, OM3, OM4
Thay đổi tổn thất chèn: < 0,1dB Trả lại thay đổi tổn thất: <5db
Lực chèn và lực kéo: 2kg
Làm nổi bật:

10Gbps Networks Fiber Optic Patch Cord

,

Low Insertion Loss Optical Patch Cord

,

High Return Loss Fiber Optic Cable

Mô tả sản phẩm

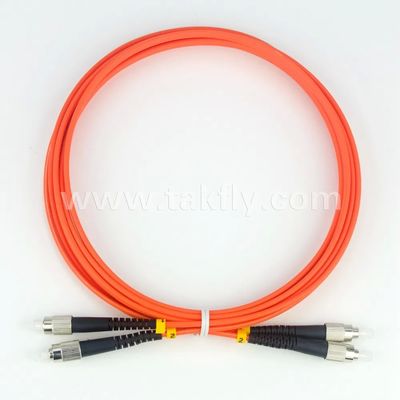

FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord
The FC to FC Multimode 50/125 Duplex Fiber Optical Patch Cord is designed for high-performance signal routing between devices. This OM3 50/125 multimode fiber optic cable complies with ISO/IEC 11801 standards, making it ideal for 10Gbps networks to support growing high data rate requirements.
Key Features
  • Low insertion loss and high return loss
  • Compact, lightweight design for high-density connections
  • Excellent exchangeability
  • High reliability and stability
  • Supports 10 Gigabit data transmission rates
  • Available in multiple connector types: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
  • Polishing options: PC, UPC, and APC
  • Compliant with IEC standards
Applications
  • Telecommunication networks
  • Fiber optic communication systems
  • CATV, LAN, MAN, WAN infrastructure
  • Test & Measurement equipment
  • Optical access networks
Technical Specifications
Parameter Unit Standard & Requirement
Insertion loss dB ≤0.20
Changeability dB ≤ 0.20dB
Radius of curvature nm 10 ≤ r ≥25
Curvature eccentricity um <50
Fiber core undercut nm <50
Insertion loss change dB < 0.1
Return loss change dB < 5
Insert & pull out (Max.) kg 2
Insert and pull frequency Time > 1000
Operating temperature ºC -40~+85
FC to FC Multimode 50/125 Duplex Fiber Optic Patch Cord for 10Gbps Networks with Low Insertion Loss and High Return Loss 0 FC to FC Multimode 50/125 Duplex Fiber Optic Patch Cord for 10Gbps Networks with Low Insertion Loss and High Return Loss 1 FC to FC Multimode 50/125 Duplex Fiber Optic Patch Cord for 10Gbps Networks with Low Insertion Loss and High Return Loss 2 FC to FC Multimode 50/125 Duplex Fiber Optic Patch Cord for 10Gbps Networks with Low Insertion Loss and High Return Loss 3
