Takfly High-Density Rackmount Patch Panel with Plug-and-Play 12-Fiber MTP/MPO Cassette Management for Data Centers
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Quảng Đông, THÂM QUYẾN |
| Hàng hiệu: | TAKFLY |
| Chứng nhận: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Số mô hình: | Bảng vá lỗi DF-MPO #995 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bức ảnh |
|---|---|
| Giá bán: | US$0.01 ~ US$1200/PC |
| chi tiết đóng gói: | spone + hộp + thùng carton |
| Thời gian giao hàng: | 3-7 ngày làm việc |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Thông tin chi tiết |
|||
| Kiểu cài đặt: | Trình cắm/chấm dứt trường | Số lượng sợi mô-đun: | Lên đến 24 |
|---|---|---|---|
| Nhiệt độ hoạt động: | -40°C đến +80°C | lõi: | 2/4/6/8/12/24/48 |
| Chất liệu cáp: | Lszh / ofnp / pvc | Số lượng chất xơ: | 12F |
| Số lượng sợi: | 8/12/24/48/72 sợi | Trả lại tổn thất: | > 50db |
| Bản vá hình sự: | 6 x 4 lc x 5 moudle | Phân cực: | B |
| Ir Stardand: | MPO/MTP<0,7dB | Cốt lõi: | Đa lõi |
| Chế độ sợi: | SM, MM(OM1,OM2,OM3,OM4,OM5) | Kích cỡ: | 180 x 90 x 30 (mm) |
| Đường kính cáp: | 0,9 / 2,0 / 3,0mm | ||
Mô tả sản phẩm
Takfly 1U/2U Rackmount Patch Panel – High‑Density MTP/MPO to LC Cassette Management for Data Center & LAN
Product Overview

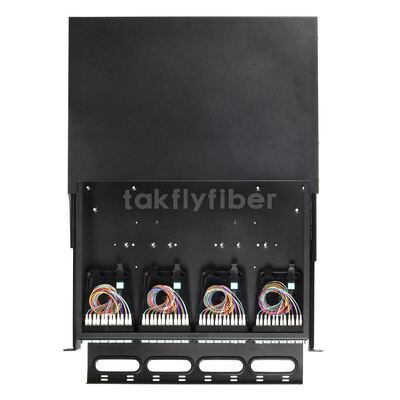

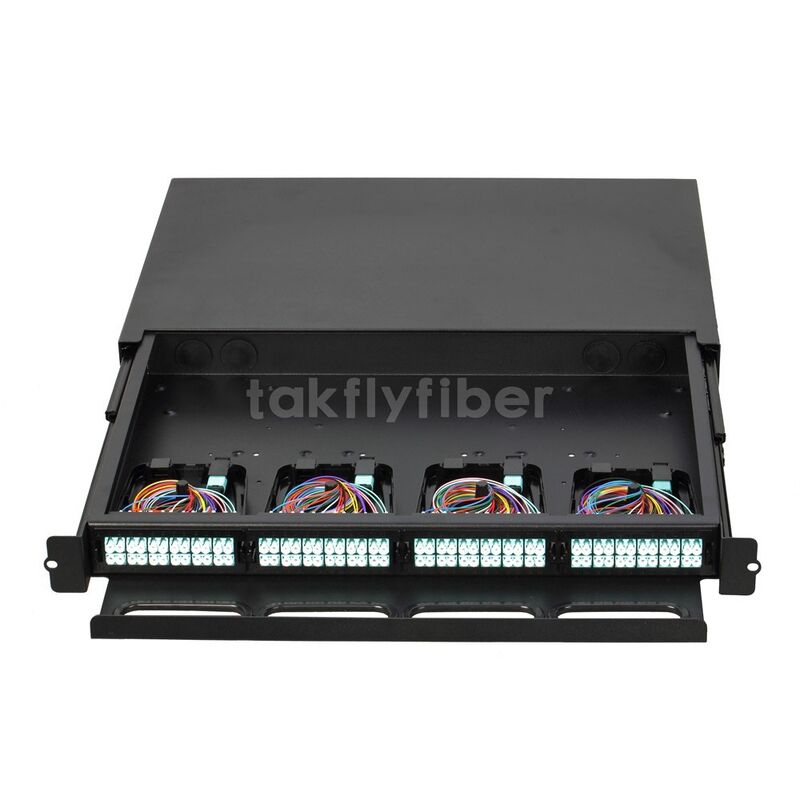

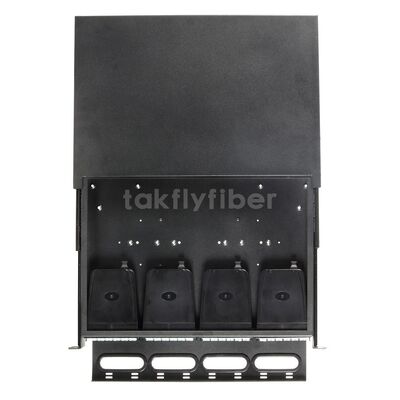

The Takfly series rackmount patch panel is designed to house easy‑plug MTP/MPO to LC fiber cassette modules, forming a plug‑and‑play, pre‑terminated high‑density MTP/MPO cabling system. This solution enhances network availability and is especially suitable for SAN, LAN, and data center environments. Each cassette accommodates a 12‑ or 24‑fiber MTP/MPO‑based assembly and comes pre‑loaded with LC adapters in various fiber modes.
Key Features
- Supports up to 4 small MTP/MPO modules in 1U rack space
- Multiple adapter options available
- Compatible with loose tube, distribution, and pre‑terminated cables
- ROHS, REACH SvHC, and UL rated
- Standard 19‑inch width, sliding‑type design for easy maintenance
Applications
- Data center
- Telecommunication networks
Mechanical Specifications
| Parameter | 1U | 2U |
|---|---|---|
| Height | 44 mm | 88 mm |
| Maximum port count | 4 (up to 96 cores) | 8 (up to 192 cores) |
| Width | 482.6 mm (19″) | 482.6 mm (19″) |
| Depth | 363.2 mm | 363.2 mm |
| Net weight | 3 kg | 6 kg |
| Packaged weight | 3.3 kg | 6.5 kg |
| Material | 1.2~1.5 mm cold‑rolled steel | same |
| Coating | Powder coating | same |
| Color | Black | Black |
Standards Compliance
- Designed according to TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297‑1
- RoHS, REACH/SvHC compliant
Product Structure
1U Size
2U Size
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All the products are 100% test before delivery.
Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
Q: What's your warranty?
A: Depends on different product, we have 1 year warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
Q: Can you offer OEM/ODM?
A: Yes, we can. All products accept OEM/ODM. We can sign the Confidentiality Agreement.
Q: Can I have a sample?
A: It depends on which products. Free sample provide under $10 USD. Freight will be paid by buyer before delivery.
Q: How can I order?
A: 1. Send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
Q: What is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery. With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price. 3 years work experience in optical fiber industry, It's honored to be your professional product assistant.
