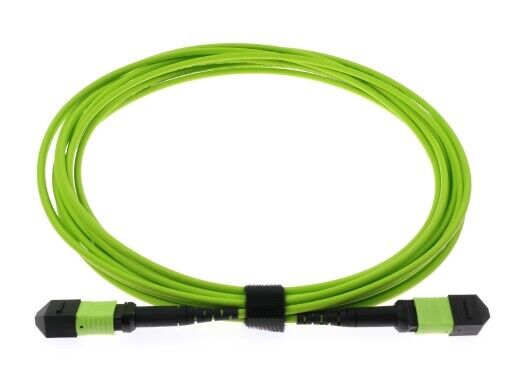

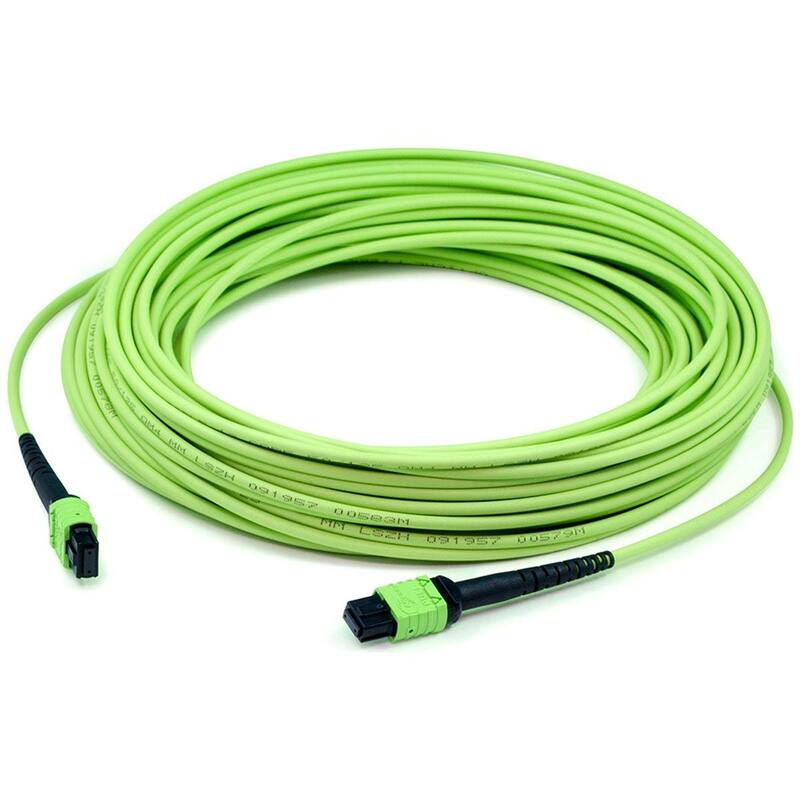

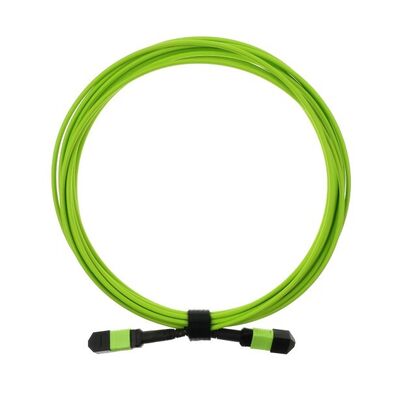

OM5 MPO/MTP Pre‑ended Multi‑Core Fiber Assembly for Dense Data Center Environments
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Thâm Quyến, Trung Quốc |
| Hàng hiệu: | Takfly/OEM |
| Chứng nhận: | CE, ISO, RoHS, GS |
| Số mô hình: | Dây vá MPO/MTP |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 cái |
|---|---|
| Giá bán: | US $9.88-US $19.88/ Pcs |
| chi tiết đóng gói: | Túi PP sau đó trong carton |
| Thời gian giao hàng: | 3-7 ngày làm việc |
| Điều khoản thanh toán: | L/C,T/T,Western Union,Paypal |
| Khả năng cung cấp: | 50000 chiếc / tháng |
|
Thông tin chi tiết |
|||
| Cốt lõi: | Đa lõi | Đầu nối A: | Sc |
|---|---|---|---|
| Đầu nối B: | MPO/MTP | Chế độ sợi: | 50/125um |
| Đường kính cáp: | 0.9/2.0/3.0 | Loại Ba Lan: | PC/APC |
| Trả lại tổn thất: | MM/PC: 20dB/SM/APC: 60dB | Mất chèn: | Tối đa 0,35dB (Loại 0,15dB) |
| Vật liệu vỏ ngoài: | PVC/LSZH | Bán kính uốn cong Tĩnh/Động: | 10 ngày/20 ngày |
| Mã HS: | 854470000 | Giới tính: | Nam/nữ |
| Làm nổi bật: | OM5 MPO MTP fiber assembly,pre-ended multi-core fiber cable,data center fiber optic assembly |
||
Mô tả sản phẩm
OM5 MPO/MTP Pre‑ended Multi‑Core Fiber Assembly for Dense Data Center Environments
OM5 MPO/MTP patch cords are pre-terminated multi‑fiber cables engineered for high‑port‑density data center deployments. Each assembly features factory‑installed MPO/MTP connectors on both ends, eliminating the need for on‑site splicing or polishing. This ensures plug‑and‑play readiness, consistent optical performance, and accelerated network deployments.
Utilizing OM5 multimode fiber technology, these patch cords support high‑speed parallel optics for 40G, 100G, and emerging applications. The multi‑fiber design consolidates multiple connections into a single cable, optimizing rack space utilization and reducing cable clutter. This streamlined approach enhances airflow around active equipment while maintaining superior performance.
Takfly's OM5 MPO/MTP product line offers comprehensive customization options including fiber count, polarity, connector gender, and cable jacket material (PVC or LSZH). Engineered for reliability and scalability, these patch cords provide an efficient, space‑optimized cabling solution for modern data center infrastructure.
Key Features
- IEC61754-7 compliant
- EIA/TIA-604-5 compliant
- High precision guide pins for exact alignment
- Compact design supporting 4/8/12/16/24/32/48/72 fibers
- Multiple optical cable types: ribbon cable, ribbon fiber, breakout mini cable
Applications
- CATV, Video and Multimedia systems
- Telecommunication Networks
- Optical Switch interframe connections
- Industrial & Military applications
- Premise Installations
- Gigabit Ethernet
- Interconnection for O/E modules
- Active Devices/Transceiver Interface
- Asynchronous Transmission Mode (ATM)
- Parallel optical interconnect between PC Cards and patch panels
Technical Specifications
| Parameter | MPO/MTP | LC / SC / ST / FC |
|---|---|---|
| End Face Type | PC and APC | UPC and APC |
| Fiber Type | SM (G652, G655, G657); MM (OM1-OM5) | Same |
| Core Number | 4, 8, 12, 16, 24, 32, 48, 72 | 1 (single fiber) |
| Cable Diameter | Mini Round Cable: ≤5.0 mm Ribbon Cable: ≤2.5×5.0 mm |
0.6 mm, 0.9 mm, 2.0 mm, 3.0 mm |
| Insertion Loss (Typical / Max) | Low Loss: 0.2 / 0.35 dB Standard: 0.3 dB (typical) |
0.3 dB (typical) |
| Return Loss (Min) | APC SM: 60 dB PC MM: 20 dB |
UPC SM: 50 dB UPC MM: 25 dB |
| Outer Sheath Material | PVC / LSZH | PVC / LSZH |
Ordering Information
- Fiber count: simple / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Coating material: PVC / LSZH
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Patch cord length: customized to requirements
- Insertion/Return Loss: Standard/Low Loss options
- Type: Pigtail/Patch Cord/LGX Box/Patch Panel
- MPO/MTP connector specifications: method (A/B/C type), gender (male/female), fiber count (4/8/12/16/24/32 fiber)
Frequently Asked Questions
Q: Can you quote FOB price?
A: Yes. We offer delivery by air, DHL, TNT, UPC, FEDEX, etc. For large quantities, we deliver by sea. We provide pricing with freight and lead time details based on your specific requirements and quantity. We work with competitive shipping forwarders. Contact us for comprehensive solutions.
Q: What's your MOQ?
A: Minimum order quantity can be 1 piece, though pricing is more competitive with larger quantities. We offer volume-based pricing discounts.
Q: What's your lead time?
A: Lead time depends on product type and quantity. For fiber optic patch cords, we can deliver within 2-3 working days for orders up to 5000 pieces. We maintain stock of regular products and can accommodate urgent orders.
Q: What is your payment term?
A: We accept T/T, Western Union, Paypal, and MoneyGram. For large amounts, we offer 50% deposit with balance payment before delivery. We are committed to matching competitive market pricing while maintaining quality standards.
Q: How is your quality?
A: Our manufacturing follows IEC and European standards. Products are CE, ISO, RoHS, CPR, and ANATEL certified. All products undergo 100% testing before delivery to ensure quality and performance.
Q: Can you offer OEM/ODM?
A: Yes, we provide comprehensive OEM/ODM services. We can sign Confidentiality Agreements to protect your intellectual property.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer and total solution provider for FTTH and data center applications, established in Shenzhen, China in 2000.
Q: What's your packing?
A: We use international export standard packaging. Custom logo printing is available - please specify this requirement before quotation.
Q: What's your warranty?
A: We offer 1-year warranty for patch cords from delivery date, covering non-artificial damage. For artificial damage, we provide free repair services with freight costs covered by the customer.
Q: Can I have a sample?
A: Free samples are available for products under $10 USD. For sample requests, freight costs are paid by the buyer before delivery.
